Drum Gear Coupling Specification: A Complete Sizing Guide for Heavy Machinery

A maintenance engineer at a steel plant in Turkey received a quote for replacement drum gear couplings on a roughing mill stand. The supplier listed torque ratings, bore sizes, and a part number, but omitted axial travel, angular capacity, and tooth hardness. The engineer accepted the quote. Six months later, the coupling teeth showed fretting wear and the spacer had bottomed out against the hub face during thermal expansion.

The failure had nothing to do with torque rating on paper. The coupling simply didn't match the drum gear coupling specification required by the actual machine. Specification is more than a table of dimensions. It is the complete set of operating requirements that determines whether a coupling survives or fails.

In this guide, you'll learn how to read, specify, and verify a drum gear coupling specification for high-torque industrial drives. We cover GIICL, NGCL, and WGT series ratings, dimensional standards, material requirements, misalignment limits, lubrication, sealing, and what to request from the manufacturer. Whether you're sizing a new coupling or replacing a worn unit, this guide will help you match specification to application.

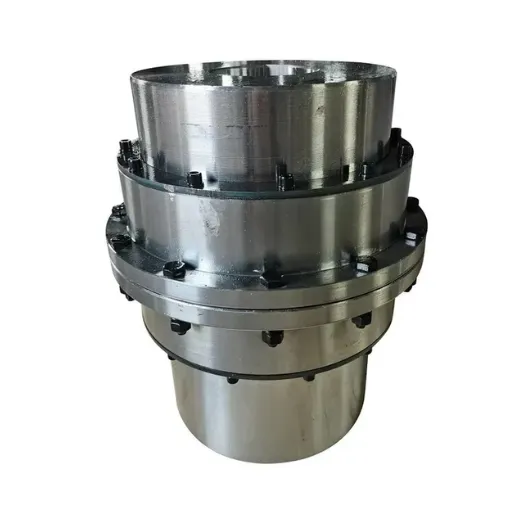

What Is a Drum Gear Coupling?

A drum gear coupling is a type of flexible gear coupling with curved external teeth machined on the hub and matching internal teeth in a sleeve or drum. The curved, or crowned, tooth profile allows the coupling to compensate for angular, radial, and axial misalignment between connected shafts while transmitting high torque.

The drum-shaped outer sleeve gives the design its name. Compared with straight-tooth gear couplings, the drum form provides larger tooth contact area, better load distribution, and greater tolerance to shaft movement. These characteristics make drum gear couplings common in steel mills, mining crushers, cement kilns, cranes, and heavy-duty pump drives.

Hebei Suju manufactures GIICL drum gear couplings for high-torque, multi-direction misalignment applications. Our couplings are forged from alloy steel, precision machined, heat-treated, and inspected to dimensional tolerances suitable for severe industrial service.

Key Parameters in a Drum Gear Coupling Specification

A complete drum gear coupling specification defines how the coupling fits, performs, and survives in service. The following parameters appear on most engineering drawings and datasheets.

Rated Torque

Rated torque is the maximum continuous torque the coupling can transmit under normal operating conditions. It is the fundamental sizing value. Always apply a service factor based on application severity. Heavy machinery typically requires a service factor between 1.5 and 3.0.

For motor-driven systems, nominal torque is calculated as:

• Nominal torque (N·m) = 9,548 × Power (kW) / Speed (RPM)

Multiply the nominal torque by the service factor to determine the required rated torque of the coupling.

Allowable Misalignment

Drum gear couplings tolerate three types of misalignment:

• Angular misalignment: the angle between shaft centerlines, usually expressed in degrees.

• Radial misalignment: the parallel offset between shaft centerlines, usually expressed in millimeters.

• Axial movement: the end float or thermal expansion allowance, expressed in millimeters.

Always confirm that the coupling's allowable values exceed the actual operating misalignment. Operating near the limit reduces service life.

Bore Diameter and Keyway

The finished bore diameter must match the shaft diameter with the correct fit. The keyway width, depth, and location must match the shaft key. Some specifications also include tolerance class for bore and keyway.

Overall Dimensions

Critical gear coupling dimensions include outside diameter, overall length, spacer length (if applicable), bolt circle diameter, and bolt size. These dimensions determine whether the coupling fits in the available space and whether the connected machines can be assembled or disassembled.

Speed Rating

Maximum allowable speed depends on balance, size, and design. High-speed applications may require dynamic balancing to ISO 1940 grades. For most heavy machinery, speed is not the limiting factor, but balance and runout still matter.

Materials and Heat Treatment

Typical hub and sleeve materials include 42CrMo alloy steel or equivalent grades. Teeth are induction hardened or carburized to achieve surface hardness, usually in the range of 45-60 HRC depending on design and standard. Core toughness is maintained to resist shock loads.

Lubrication and Sealing

Drum gear couplings require lubrication to reduce tooth wear and dissipate heat. Specifications should define lubricant type, fill quantity, replenishment interval, and seal configuration. Sealed designs are preferred in dusty, wet, or contaminated environments.

GIICL, NGCL, and WGT Drum Gear Coupling Series

Several standardized drum gear coupling series are used in Chinese and international heavy machinery. Each series has distinct dimensional ranges and application emphasis.

GIICL Drum Gear Coupling

The GIICL series is a curved-tooth drum gear coupling designed for high torque and large misalignment. It's widely used in steel rolling mills, mining equipment, cement kilns, and cranes. The GIICL coupling allows axial movement, angular misalignment, and radial offset within published limits.

Typical GIICL coupling specification ranges include:

These values are representative. Always confirm exact dimensions and ratings with the manufacturer's catalog or drawing for the specific size you need.

NGCL Drum Gear Coupling

The NGCL series is a drum gear coupling with brake wheel, designed for applications that require a brake disc or drum mounted integrally with the coupling. It is commonly used on cranes, hoists, and lifting equipment where braking torque must be transmitted through the NGCL coupling assembly.

The brake wheel adds inertia and changes the dimensional envelope, so the drum gear coupling specification for NGCL units must include brake diameter, braking torque, and mounting requirements.

WGT Drum Gear Coupling

The WGT series is a spacer-type drum gear coupling with a removable intermediate tube. The WGT coupling is used when maintenance access is limited because the spacer can be removed without moving the connected machines. WGT couplings are common on large pumps, compressors, and fans.

When specifying a WGT coupling, pay close attention to spacer length, axial adjustment range, and the method of centering the spacer during installation.

How to Read a Drum Gear Coupling Specification Sheet

A specification sheet or drawing may contain dozens of values. Focus on the parameters that affect performance and assembly.

When reviewing a drum gear coupling specification sheet, check the following:

1. Torque rating: confirm it includes your service factor.

2. Misalignment limits: compare with measured or estimated shaft movement.

3. Bore and keyway: verify fit with the shaft and key.

4. Overall dimensions: confirm clearance and assembly access.

5. Speed limit: confirm it exceeds maximum operating speed.

6. Material and hardness: verify material grade and tooth hardness.

7. Lubrication: confirm grease or oil type and seal design.

8. Standard: note whether dimensions follow GB, JB/T, AGMA, ISO, or a manufacturer standard.

If a datasheet omits any of these values, request clarification before ordering. Catalog part numbers alone do not guarantee application fit.

Need help interpreting a drum gear coupling specification? Send us your drawing and our engineers will review torque, misalignment, and material requirements.

Standards and Tolerances

Drum gear couplings may be manufactured to several standards depending on the market and application. Common references include Chinese mechanical industry standards such as JB/T, as well as international standards from ISO, AGMA, and DIN.

Key tolerance considerations include:

• Bore tolerance: usually H7 or JS7 for interference or transition fits.

• Keyway tolerance: P9 or JS9 depending on key fit class.

• Runout: total indicated runout of hub bore to tooth fit should be within specified limits.

• Tooth profile and pitch accuracy: affects load distribution and backlash.

• Surface hardness: verified by hardness testing after heat treatment.

• Balance grade: specified when operating speed requires dynamic balancing.

At Hebei Suju, our quality control process and ISO certifications support each of these checks before shipment. Inspection reports and material certificates are available on request.

Material Selection for Drum Gear Couplings

Material selection directly affects strength, wear resistance, and fatigue life. Most drum gear couplings for heavy machinery use forged alloy steel.

Common material choices include:

• 42CrMo: a chromium-molybdenum alloy steel with high strength, toughness, and hardenability. It is widely used for hubs and sleeves.

• 40Cr: a lower-cost alloy steel used for moderate-duty applications.

• 35CrMo: used for larger forgings where toughness is prioritized.

Heat treatment options include:

• Induction hardening: hardens the tooth surface while keeping the core tough. Common for medium and large drum gear couplings.

• Carburizing and quenching: produces a hard case and tough core. Common for smaller, heavily loaded couplings.

• Nitriding: used for special applications requiring wear and corrosion resistance.

Material and heat treatment should be selected based on torque, shock load, environment, and expected service life. When in doubt, consult the coupling manufacturer.

Common Applications and Specification Requirements

Different industries place different demands on drum gear coupling specification. Understanding these differences helps you request the right data from the supplier.

Steel and Metallurgy

Rolling mills, continuous casting lines, and roughing stands transmit very high torque with frequent shock loads from bite impacts. Drum gear couplings for steel mills need high torque capacity, high tooth hardness, and tolerance to roll-change misalignment. Sealed lubrication is important because mill scale and cooling water accelerate wear.

For steel mill applications, Hebei Suju supplies GIICL drum gear couplings with hardened teeth and heavy-duty seals. See more about our steel and metallurgy applications.

Mining and Cement

Crushers, mills, kilns, and conveyors operate in dusty, abrasive environments. The drum gear coupling specification for these machines should emphasize sealing, contamination resistance, and adequate service factor. Axial movement from kiln heat expansion must also be accommodated.

Visit our mining and cement applications page for more information on coupling selection in these industries.

Cranes and Lifting Equipment

Crane hoists and travel drives require couplings that handle frequent starts, stops, and reversing loads. NGCL couplings with brake wheels are often specified for these applications. The specification must include braking torque and inertia requirements.

Chemical and Process Industry

Large pumps and compressors in chemical plants often use drum gear couplings because of their compact size and reliability. Material compatibility and sealing against process fluids are critical. For more details, see our chemical industry coupling solutions.

Common Mistakes in Specifying Drum Gear Couplings

Errors in specification lead to premature wear, vibration, and unexpected downtime. Avoid these common mistakes:

• Using catalog part number only: a part number identifies dimensions but may not match your torque, misalignment, or environmental requirements.

• Ignoring peak torque: startup and braking peaks can exceed continuous rated torque significantly.

• Underestimating misalignment: thermal expansion and foundation movement create real misalignment that must fit within coupling limits.

• Wrong bore fit: a loose bore causes fretting; an excessive interference fit can crack the hub.

• Neglecting lubrication and seals: contaminated or insufficient lubricant shortens tooth life.

• Forgetting brake requirements: for NGCL and similar designs, brake torque and dimensions must be specified.

If you're replacing a failed coupling, don't assume the original was correctly specified. Investigate the root cause and update the specification accordingly.

When to Specify a Custom Drum Gear Coupling

Standard GIICL, NGCL, and WGT series cover many applications, but some situations require a custom design. Consider a custom drum gear coupling when:

• Shaft diameters fall outside standard bore ranges.

• Spacer length or overall dimensions are non-standard.

• Torque or speed exceeds catalog ratings.

• The coupling must replace a legacy part no longer manufactured.

• The environment requires special materials, seals, or coatings.

• Brake wheel size or inertia is non-standard.

At Hebei Suju, our custom coupling manufacturing service supports drawing-based production and reverse engineering from worn samples. Send us your drawing or sample for engineering review.

Installation and Maintenance Considerations

Even a correctly specified coupling can fail if it is installed or maintained incorrectly. Include these requirements in your specification and maintenance plan.

Alignment Verification

Measure shaft alignment before installation and verify it against the coupling's allowable misalignment. If you need guidance on measuring shaft misalignment, see our dedicated guide. Document the measured values so future maintenance can detect changes caused by foundation settlement or bearing wear.

Bolt Torque and Runout

Tighten mounting bolts to the specified torque in the correct sequence. Check radial and axial runout after assembly. Excessive runout causes vibration and reduces bearing life.

Lubrication Schedule

Follow the manufacturer's recommended lubricant type and replenishment interval. For severe environments, inspect seals and lubricant condition more frequently. Contaminated grease should be replaced before it damages the tooth surface.

Inspection Intervals

For critical drives, inspect the coupling during every planned shutdown. Look for tooth wear, seal damage, bolt loosening, and evidence of axial bottoming or misalignment.

Drum Gear Coupling Specification Checklist

Use this checklist to make sure your specification is complete before requesting a quotation:

•  Motor or driver power and speed documented

•  Nominal and peak torque calculated

•  Service factor selected based on application severity

•  Required bore diameter and keyway size confirmed

•  Shaft misalignment measured or estimated

•  Axial travel from thermal expansion calculated

•  Maximum operating speed defined

•  Overall envelope dimensions verified

•  Material and heat treatment requirements specified

•  Lubricant type and sealing configuration selected

•  Standard or drawing reference confirmed

•  Brake wheel or spacer requirements included if applicable

•  Inspection and certification requirements defined

If you can complete this checklist, you are ready to request a quotation or send a drawing for review.

FAQ

What is the difference between GIICL and NGCL drum gear couplings?

GIICL is a general-purpose curved-tooth drum gear coupling for high torque and misalignment. NGCL is a drum gear coupling with an integral brake wheel, commonly used on cranes and hoists where braking torque must be transmitted.

How do I calculate the required torque rating for a drum gear coupling?

Calculate nominal torque from motor power and speed, then multiply by the application service factor. The coupling's rated torque must equal or exceed the adjusted value. Also confirm that peak torque is within the coupling's maximum capacity.

What materials are used for drum gear couplings?

Most drum gear couplings use forged alloy steel such as 42CrMo. Teeth are induction hardened or carburized for wear resistance. Material selection depends on torque, shock load, and environment.

Can drum gear couplings be customized?

Yes. Drum gear couplings can be customized for bore size, spacer length, material, heat treatment, seals, brake wheels, and torque rating. Hebei Suju manufactures custom drum gear couplings from customer drawings or samples.

What standards apply to drum gear couplings?

Drum gear couplings may be manufactured to Chinese industry standards such as JB/T, or international standards from ISO and AGMA. Always confirm with your supplier which standard applies to the specific coupling you are ordering.

Conclusion

A proper drum gear coupling specification goes far beyond a part number and bore size. It includes torque capacity with service factor, allowable misalignment, bore and keyway dimensions, speed rating, materials, heat treatment, lubrication, sealing, and applicable standards. When these parameters match the application, a drum gear coupling delivers reliable service for years in severe conditions.

Use this drum gear coupling specification checklist to document your requirements, then compare them against the manufacturer's datasheet or drawing. If your application falls outside standard catalog ranges, consider a custom design.

As a drum gear coupling manufacturer, Hebei Suju produces GIICL, NGCL, and WGT drum gear couplings for steel mills, mining operations, cement plants, cranes, and chemical facilities. We also supply other heavy machinery coupling types for pumps, compressors, conveyors, and fans. Our engineering team reviews your application data and recommends the right drum gear coupling specification before production.
