Drum Gear Coupling: Selection, Types, and Industrial Applications

A maintenance manager at a cement plant in Indonesia once told me his team had replaced the same coupling three times in two years. Each time, the teeth were worn on one side and the grease was black with metal dust. The coupling was the right diameter for the shaft, but it wasn't the right drum gear coupling for the load.

That pattern repeats in plants around the world. A drum gear coupling is one of the most reliable ways to connect misaligned shafts under high torque. But only when the type, size, and specification match the application.

In heavy industry, the wrong choice doesn't just wear out the coupling. It damages bearings, increases vibration, and creates unplanned shutdowns.

In this guide, you'll learn what a drum gear coupling is, how it works, which types are available, and how to select one for your drive system. By the end, you'll be able to specify a coupling that handles the torque, misalignment, and environment of your application.

What Is a Drum Gear Coupling?

A drum gear coupling is a flexible shaft connector that transmits torque through meshing external and internal gear teeth. The external teeth are cut on a curved or drum-shaped hub. They mesh with internal teeth in a sleeve or flange. The crowned tooth profile allows the coupling to accommodate angular, radial, and axial misalignment while maintaining contact across the tooth face.

This design makes the drum gear coupling ideal for high torque gear coupling applications where shafts are not perfectly aligned. The drum shape increases the contact area between teeth. It spreads the load. It reduces contact stress.

When the coupling is properly lubricated and aligned, it can run for years in severe conditions.

Hebei Suju manufactures GIICL drum gear couplings for steel mills, mining equipment, cement plants, and cranes. Our hubs and sleeves are machined from forged alloy steel, heat-treated to required hardness, and inspected before shipment.

How a Drum Gear Coupling Works

The working principle of a drum gear coupling is straightforward. Torque enters through one hub, passes through the external teeth, and transfers to the internal teeth of the mating sleeve or hub. Because the teeth are crowned, the mesh can shift slightly as the shafts move relative to each other.

The drum shape serves three purposes:

• It increases the usable tooth contact area under misalignment.

• It allows greater angular movement than a straight tooth design.

• It helps distribute lubricant across the tooth face during operation.

The coupling is filled with grease or oil to separate the teeth and carry away heat and wear particles. Seals keep the lubricant in and contamination out. The combination of hardened steel teeth and continuous lubrication is what gives a drum gear coupling its high torque capacity and long service life.

That lubrication is the difference between a coupling that lasts and one that fails early.

Main Drum Gear Coupling Types

Not all drum gear couplings are identical. The hub arrangement, sleeve design, and mounting style determine the performance characteristics. The most common drum gear coupling types used in industry are the GIICL, GIICLZ, WGT, and custom variants.

GIICL Drum Gear Coupling

The GIICL drum gear coupling is a standard double-jointed design with two hubs and a central sleeve. It's widely used in horizontal drives where some angular, radial, and axial misalignment is expected. The GIICL series is compact for its torque capacity and is available in a wide range of bore sizes.

Best for: Steel rolling mills, mining crushers, cement kilns, cranes, heavy conveyors.
Advantages: High torque density, good misalignment tolerance, widely available sizes, and a proven choice as a high torque gear coupling for heavy drives.
Limitations: Requires lubrication, not ideal for very high-speed drives without balancing.

At Hebei Suju, our GIICL drum gear coupling range covers standard and customized bore configurations for maintenance and OEM projects.

GIICLZ Drum Gear Coupling

The GIICLZ drum gear coupling is similar to the GIICL but designed for intermediate shaft or brake wheel applications. It often includes an extended hub or flange for connecting a brake disc or flywheel. That makes it useful in hoists, cranes, and lifting equipment where a brake wheel must be mounted on the coupling.

Best for: Cranes, hoists, lifting drives, brake wheel installations.
Advantages: Integrates brake wheel mounting, high torque capacity.
Limitations: Slightly larger envelope, requires precise assembly.

WGT Drum Gear Coupling

The WGT drum gear coupling is a spacer-type design with a tubular intermediate section. The spacer allows the connected machines to be separated for maintenance without moving either shaft. This is valuable when access is limited or when frequent inspection is needed.

Best for: Pumps, compressors, gearboxes, drives with limited maintenance access.
Advantages: Easier maintenance access, allows axial disassembly.
Limitations: Longer overall length, slightly heavier.

Custom Drum Gear Couplings

When catalog sizes don't fit, a custom drum gear coupling can be manufactured to match specific bore sizes, spacer lengths, torque ratings, or material requirements. This is common when replacing legacy couplings or integrating new equipment.

Hebei Suju specializes in drawing-based customization for non-standard drum gear couplings. Send us your drawing or worn sample for an engineering review, and we can recommend the best drum gear coupling types for your layout.

Which drum gear coupling type fits your application? Compare the main options below.

Drum Gear Coupling Selection: Five Key Factors

Drum gear coupling selection isn't just about matching the shaft diameter. The right coupling depends on torque, speed, misalignment, environment, and duty cycle. It doesn't matter how strong the steel is if the coupling is the wrong size for the load. For a broader approach, see our coupling selection guide.

1. Rated Torque and Service Factor

Start with the nominal torque of the drive system. In heavy machinery, it's also important to consider peak torque from startup, braking, and shock loads. Most manufacturers publish a rated torque value, but the application service factor increases that requirement.

As a simple rule:

• Calculate nominal torque from motor power and speed.

• Multiply by a service factor based on the application (typically 1.5 to 3.0 for heavy machinery).

• Select a coupling with a rated torque at least equal to the adjusted value.

For example, a 500 kW motor running at 500 RPM produces approximately 9,550 N·m of nominal torque. With a service factor of 2.0, the coupling should be rated for at least 19,100 N·m.

AGMA publishes service factor tables that help engineers match the coupling to the severity of the drive. Manufacturer catalogs also provide application-specific factors.

2. Operating Speed

Drum gear couplings are suitable for a wide speed range, but high-speed applications require attention to balance. An unbalanced coupling at high RPM causes vibration, bearing load, and noise. For speeds above 3,000 RPM, specify dynamic balancing to the appropriate ISO grade.

At Hebei Suju, we can perform dynamic balancing as part of the drum gear coupling selection process when the application demands it. This is especially important for test stands, turbo machinery, and high-speed pump drives.

3. Shaft Misalignment

Heavy machinery often experiences thermal expansion, foundation settlement, and assembly tolerances that create misalignment. Drum gear couplings can compensate for angular, radial, and axial misalignment, but each design has limits.

When reviewing application requirements, measure or estimate the three types of movement:

• Angular misalignment: The angle between the two shaft centerlines.

• Radial misalignment: The parallel offset between shaft centerlines.

• Axial movement: The expected end float of the connected shafts.

Select a coupling series whose allowable misalignment exceeds the expected values. If space permits, a WGT spacer-type design can make maintenance easier by allowing axial disassembly without moving the connected machines.

4. Operating Environment

The environment affects material selection, sealing, and lubrication. Consider these factors:

• Temperature: High temperatures reduce lubricant life and may require special seals or materials.

• Dust and moisture: Open designs need protection in dirty or wet environments.

• Corrosion: Chemical plants and marine applications may require corrosion-resistant coatings or materials.

• Safety: Some applications require guards or limited end float designs.

For outdoor or dusty environments, specify a sealed design with appropriate lubricant retention. In corrosive atmospheres, discuss material options such as alloy steel with protective coating or stainless alternatives.

5. Service Life and Maintenance Requirements

Drum gear couplings can last for years when they're properly lubricated and aligned. But neglect maintenance, and wear accelerates fast. Before selecting a coupling, consider:

• How often the coupling can be inspected.

• Whether the lubricant can be replenished during operation.

• Whether seals can be replaced without removing the coupling.

• Whether the application can tolerate downtime for maintenance.

A coupling that's difficult to access should use a long-life lubricant and robust seals. A coupling in a critical drive should be monitored for temperature and vibration. If you can't inspect it often, specify a sealed design.

Quick Drum Gear Coupling Selection Checklist

Use this checklist before finalizing a specification:

•  Nominal torque calculated from motor power and speed

•  Service factor applied for shock, reversing, or heavy-duty loads

•  Maximum operating speed confirmed and balancing specified if required

•  Expected angular, radial, and axial misalignment documented

•  Environmental factors reviewed (temperature, dust, moisture, chemicals)

•  Maintenance access and lubrication intervals planned

•  Spacer or custom design considered if removal is difficult

Need help with a specific application? Request a quotation and send us your drive details.

Common Drum Gear Coupling Applications

These couplings appear across heavy industry because they combine torque capacity with misalignment tolerance. Common drum gear coupling applications include steel production, mining, cement, chemicals, cranes, power generation, and marine propulsion.

Steel and Metallurgy

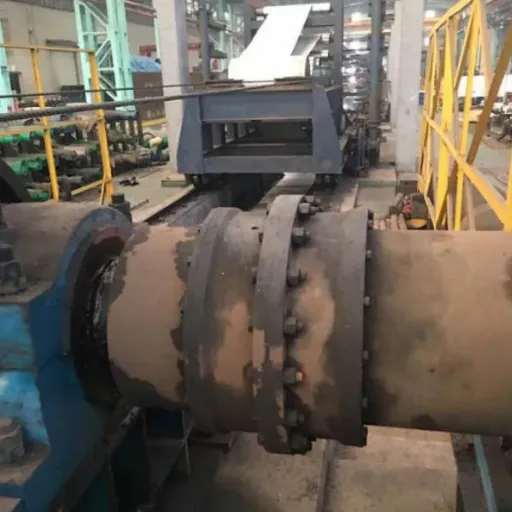

In steel and metallurgy applications such as rolling mills and continuous casting lines, drum gear couplings transmit high torque between motors, gearboxes, and work rolls. The couplings must tolerate shock loads from bite impacts and misalignment caused by roll changes. Specifying a GIICL drum gear coupling gives engineers a proven, compact solution that handles the shock loads and roll-change misalignment common in steel production.

Mining and Cement

Crushers, mills, kilns, and conveyors in mining and cement plants operate in dusty, high-load conditions. These drum gear coupling applications demand torque capacity and durability in harsh environments. Regular inspection and lubrication are essential because contamination accelerates wear.

Chemical and Process Industry

Large pumps, compressors, and mixers in chemical plants often use drum gear couplings because of their reliability and compact size. In these applications, material compatibility and sealing against process fluids are critical.

Cranes and Lifting Equipment

Crane hoists and travel drives use these couplings to connect motors and gearboxes. The couplings must handle frequent starts, stops, and reversing loads. The GIICLZ design is especially popular where a brake wheel must be mounted on the coupling.

Power Generation and Marine

Turbines, generators, and marine propulsion systems use this design where high torque and some shaft movement must be accommodated. These applications often require special balancing, materials, and corrosion protection. Hebei Suju also supplies cardan shafts for long-distance shaft connections and large-angle drives.

Materials and Manufacturing

The performance of a drum gear coupling depends on material quality and heat treatment. At Hebei Suju, our coupling hubs and sleeves are typically manufactured from alloy steel such as 42CrMo or equivalent. After rough machining, the teeth are induction hardened or carburized to reach the required surface hardness and wear resistance.

Key manufacturing steps include:

• Forging or bar-stock preparation: Ensures grain structure and material integrity.

• Rough machining: Brings the part close to final dimensions.

• Heat treatment: Hardens teeth and toughens the core.

• Finish machining: Achieves final bore, keyway, and tooth profile tolerances.

• Inspection: Dimensional checks, hardness testing, and surface finish verification.

• Assembly and preservation: Lubrication, sealing, and corrosion protection for shipment.

Our full-process quality control ensures that each step is documented and repeatable. We can provide inspection reports and material certificates on request.

At a limestone quarry in Guangxi, maintenance manager Wei Chen noticed a motor-driven crusher shaking after a bearing replacement. The new bearing was fine. The drum gear coupling had been pulled onto the shaft with an impact wrench, distorting the hub bore.

After the team removed the coupling, checked the runout, and reinstalled it with a puller and proper torque, the vibration disappeared. The repair took two hours. It prevented a 48-hour shutdown.

Lubrication Best Practices

A drum gear coupling needs the right lubricant to separate the teeth and carry away heat and wear particles. Most drum gear coupling designs use a lithium-based or polyurea-thickened grease with EP additives. Oil lubrication is sometimes used in high-speed or continuously running drives where grease wouldn't circulate enough.

Follow these practices to extend lubricant life:

• Fill the coupling to the manufacturer's recommended level. Too little grease causes metal-to-metal contact; too much causes churning and overheating.

• Re-grease on the recommended schedule, or sooner in dusty or wet environments.

• Use compatible grease when topping up. Mixing incompatible thickeners can break the grease down.

• Inspect the lubricant during maintenance. Metal particles, discoloration, or separation mean the coupling needs attention.

At Hebei Suju, couplings are shipped with an initial lubricant charge. We can recommend a grease grade based on your operating temperature, speed, and load.

Industry Standards and Certifications

Drum gear couplings for industrial service are often specified against recognized standards. AGMA publishes service-factor and rating guidelines such as AGMA 9000, while ISO 10441 addresses couplings used in petroleum, chemical, and gas-industry equipment. Every drum gear coupling we produce is manufactured under a documented quality system, and we can provide material certificates and inspection reports on request.

Common Failure Modes

Even a correctly selected drum gear coupling can fail if operating conditions change. Recognizing the early signs saves the connected equipment.

Misalignment Overload

Drum gear couplings tolerate misalignment, but every design has a limit. Running continuously at the edge of that limit concentrates contact stress on one side of the tooth. The result is uneven wear, pitting, and early fatigue.

Lubrication Failure

Drum gear couplings depend on clean lubricant. Grease separation, contamination, or extended intervals without relubrication lead to metal-to-metal contact. Temperature monitoring and scheduled lubricant changes prevent this.

Overload and Fatigue

Repeated shock loads above the coupling's rating cause tooth fatigue. Pitting appears first, then cracking, then tooth breakage. Matching peak torque to the coupling rating prevents fatigue failures.

Contamination

Dust, water, and process chemicals entering the gear mesh accelerate wear. Seals must be inspected and replaced before they fail.

Improper Installation

A coupling installed with uneven bolt torque, incorrect hub fit, or poor shaft alignment starts life in distress. Vibration appears early. Bearing loads rise. Don't let installation shortcuts become the reason for a premature failure.

Installation and Maintenance

Proper installation and maintenance extend service life significantly. Follow these guidelines:

• Align shafts within the drum gear coupling's rated limits. Even though these couplings tolerate misalignment, operating near the limit increases wear.

• Use the correct lubricant. Follow the manufacturer's recommendation for grease type and replenishment interval.

• Torque bolts to specification. Uneven bolt torque causes hub runout and vibration.

• Inspect seals regularly. Replace damaged seals before contamination enters the gear mesh.

• Monitor temperature and vibration. Unusual heat or vibration can indicate misalignment, lubrication failure, or wear.

For critical applications, schedule coupling inspection during planned maintenance shutdowns. Early wear detection prevents unexpected failures and costly production losses.

Storage and Handling

Store spare couplings and components in a clean, dry location. Keep them off the floor. Protect machined surfaces from corrosion. Keep lubricant seals away from ozone, sunlight, and solvents.

Handle finished couplings carefully to avoid impact damage to teeth or bores.

When to Consider a Custom Drum Gear Coupling

Catalog couplings fit many applications, but some situations require a custom design. Consider a custom drum gear coupling when:

• The shaft bores are non-standard sizes.

• The space between shafts requires a special spacer length.

• The torque or speed falls outside standard catalog ranges.

• The coupling must match a legacy part that isn't available from the original manufacturer.

• The environment requires special materials, seals, or coatings.

At Hebei Suju, we specialize in drawing-based customization. Send us your drawing or a worn sample, and our engineers will review manufacturability, recommend materials, and provide a quotation.

Frequently Asked Questions

What is a drum gear coupling used for?

A drum gear coupling transmits torque between two rotating shafts while accommodating angular, radial, and axial misalignment. It's used in high-torque applications such as steel mills, mining equipment, cement plants, and cranes.

What are the main types of drum gear couplings?

The main drum gear coupling types are the GIICL, GIICLZ, WGT, and custom variants. The GIICL is the most common general-purpose design. The GIICLZ includes provisions for brake wheel mounting. The WGT is a spacer-type design for easier maintenance.

How do I select a drum gear coupling?

Start with drum gear coupling selection basics: torque and service factor. Then check operating speed, expected misalignment, environment, and maintenance access. Match the coupling type to what matters most for your application.

When should a drum gear coupling be replaced?

Replace the coupling when inspection shows pitting, cracking, excessive backlash, or contaminated lubricant. Preventive replacement during planned shutdowns avoids emergency failures.

What is the difference between a GIICL and a GIICLZ drum gear coupling?

A GIICL drum gear coupling is a standard double-jointed design for general heavy-duty drives. A GIICLZ drum gear coupling is designed for applications requiring a brake wheel or intermediate shaft connection, such as cranes and hoists.

Why is a drum gear coupling used as a high torque gear coupling?

A drum gear coupling is used as a high torque gear coupling because its meshing hardened steel teeth can transmit very large loads while accommodating misalignment. The drum-shaped teeth distribute contact stress better than straight tooth designs.

What does drum gear coupling maintenance involve?

Routine maintenance includes alignment checks, lubricant replenishment, seal inspection, bolt torque verification, and vibration or temperature monitoring. Catching wear early prevents catastrophic failure and protects the connected machinery.

Conclusion

A drum gear coupling is a small but critical part of a heavy-duty drive system. By transmitting high torque while accommodating misalignment, this power transmission coupling protects motors, gearboxes, and driven equipment from forces that would otherwise cause premature failure.

To select the right drum gear coupling, start with torque and service factor. Then check speed, misalignment, environment, and maintenance access. Match the coupling type to the application priority. When a catalog part doesn't fit, a custom design from an experienced manufacturer keeps the project moving.

Hebei Suju manufactures a full range of GIICL drum gear couplings for these and other demanding drum gear coupling applications. If you need a standard GIICL drum gear coupling or a custom design, we can help.
